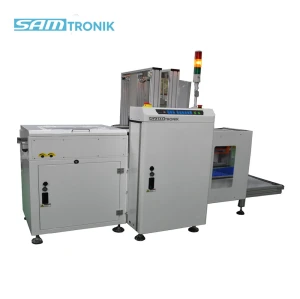

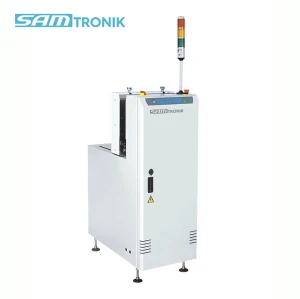

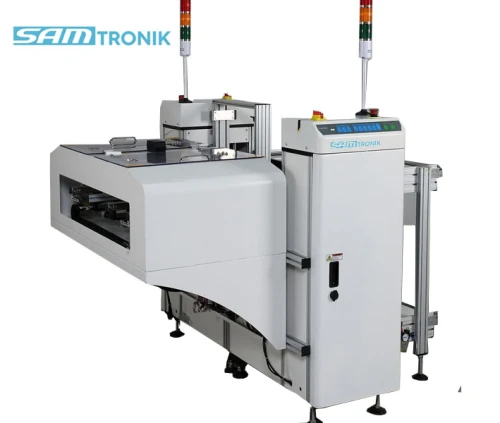

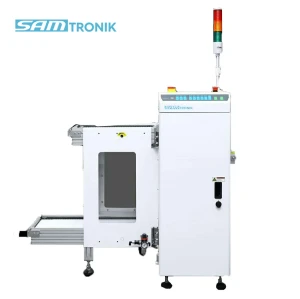

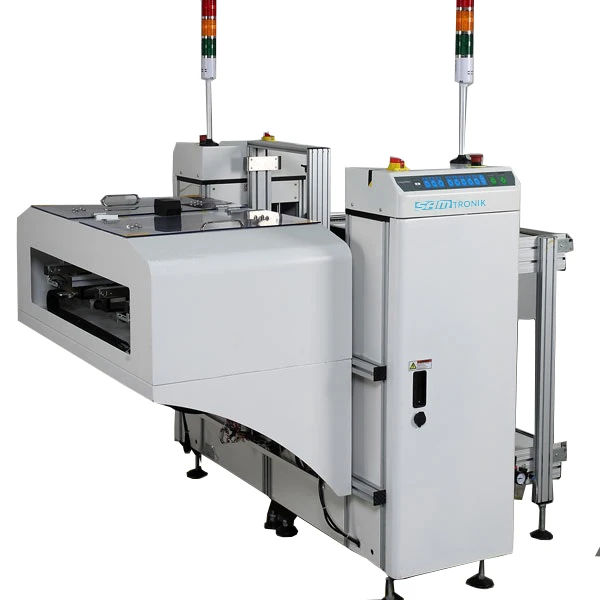

SAMTRONIK High performance Dual rail Magazine unloader
SAMTRONIK High performance Dual rail Magazine unloader
SAMTRONIK High performance Dual rail Magazine unloader

Item specifics

Brand
SAM
Application
SMT Line
Magazine No.
6 pcs
Usage
PCB Unloading
Products name
Dual rail pcb Unloader

Review

Description

Dual rail PCB Magazine Loader and Unloader
Features

1.Apply for dual rail SMT Production line front and rear  to loading and unloading PCBs from two rails .



2.PLC programming control system .

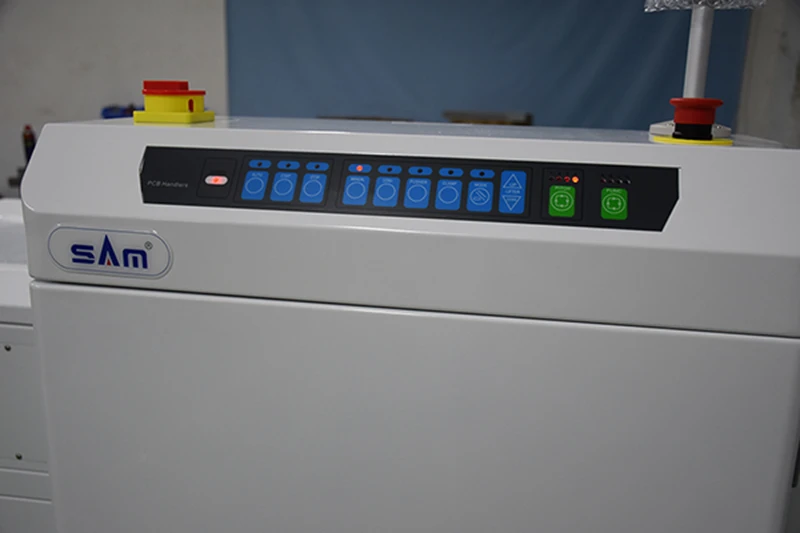

3.Simple operation Soft touch LED control panel .



4.Special pressure circuit design to prevent PCB board damage .



5.Three point pneumatic clamping to align for secure magazine position.



6.Push height can adjustment according to PCB thickness ,



7.SMEMA Compatible .

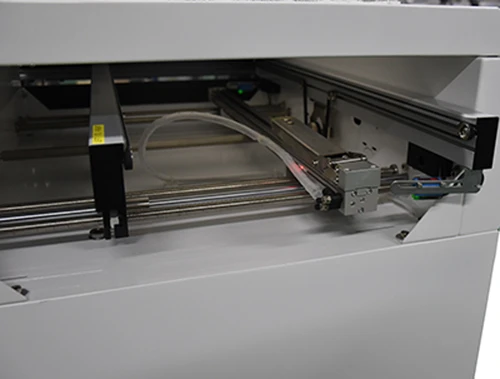

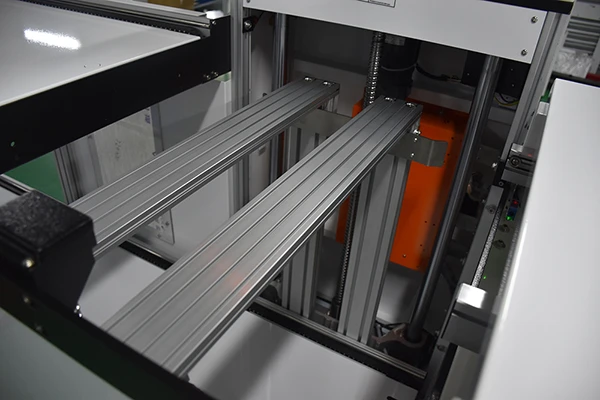

Details of PCB Magazine loader
Technical  parameter

Description

Used for loading & unloading PCBs

from the Magazine







No. of Magazine

Upper Conveyor:1;Lower Conveyor: 2





Time Feed PCB

Approx. 6 seconds or Specify





Magazine Change Time

Approx. 30 seconds or Specify





Indexing Pitch

10, 20, 30, 40mm or specify





Power Source

220VAC 50/60HZ





Air Pressure & Consume

4-6 bar, 10ltr/min max.





PCB Thickness

0.6mm min.



Customization Option

Width adjustable magazine conveyor(s)

Additional magazine capacity

Shorter magazine change-over time (20 sec)

 Touchscreen display

 Alarm buzzer

Other options available on request

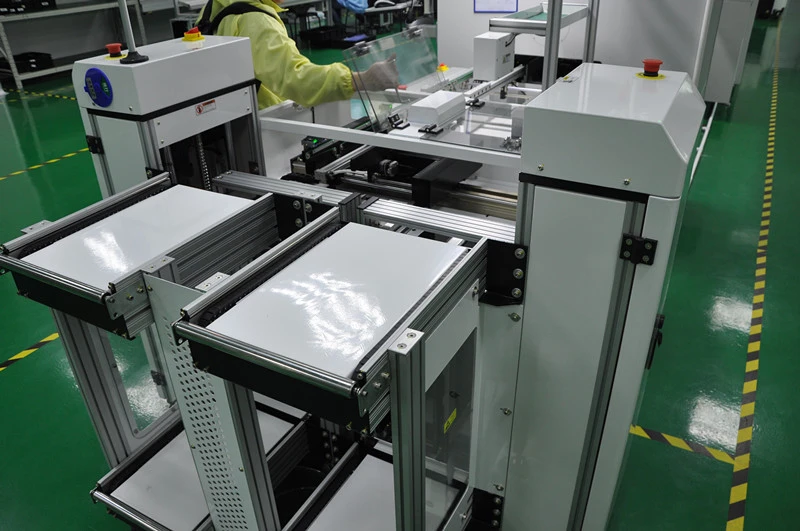

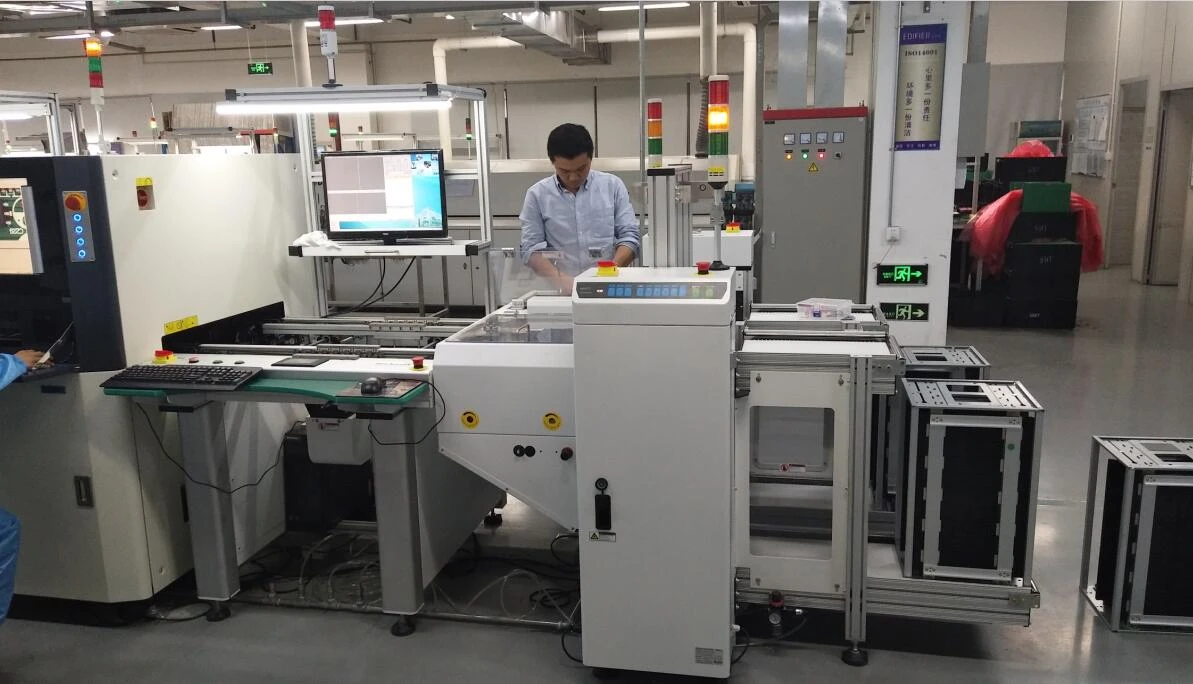

Application example

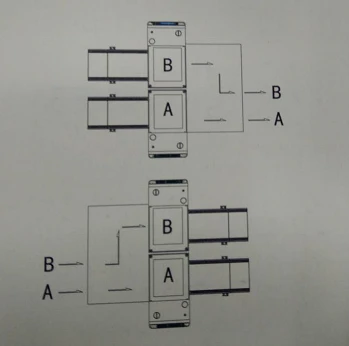

This dual rail magazine loader and unloader Apply for

dual rail SMT Production line front and rear  to loading

and unloading PCBs from two rails .
Specification

Name

Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size( LxW) (mm)

Approximate

Weight (Kg)

Rack size

(L*M*H)mm









Loader

SMB-1C300M2G

M

1450*1550*1250mm

50*50-330*250

220

355*320*560

SMB-1C300L2G

L

1650*1780*1250mm

50*50-445*330

320

460*400*560

SMB-1C300LL2G

LL

1980*1900*1250mm

50*50-530*390

380

535*460*570

SMB-1C300XL2G

XL

1980*2150*1250mm

50*50-530*460

460

535*530*570









Un-loader

SMB-1D300M2G

M

1450*1550*1250mm

50*50-330*250

220

355*320*560

SMB-1D300L2G

L

1650*1780*1250mm

50*50-445*330

320

460*400*560

SMB-1D300LL2G

LL

1980*1900*1250mm

50*50-530*390

380

535*460*570

SMB-1D300XL2G

XL

1980*2150*1250mm

50*50-530*460

460

535*530*570
